New Approaches to Dynamic Wheel Force Measurement – Part 1

by Jeff Tuzik

The mechanics of wheel/rail interaction are in many ways at the core of railroading and the defining characteristic of how a train gets from here to there. Because rail typically represents a railroad’s largest financial asset, track-related issues are often front and center, even when it comes to wheel/rail interaction. But the wheel is just as important. Advances in wheel impact load detectors and in continuous wheel-condition monitoring are beginning to change the way railroads monitor and maintain their wheels.

 In the context of the railroad industry, the wheel/rail pair is defined by two basic characteristics:

• Quasi-rigid rolling contact with low rolling resistance
• Wheelset(s) with an approximately conical tread that promotes self-alignment and self-steering.

These characteristics make railroads a very efficient mode of transportation, and from a theoretical perspective, present a system that is simple to manipulate and to optimize, Yuqing Zeng, Principal Investigator at MxV Rail, told participants at the 2023 Wheel/Rail Interaction conference. Of course, theory and practice rarely align perfectly.

Defects on the wheel or rail surface can have a significant impact on the wheel/rail system, damaging both vehicle and track. Mismatched wheel/rail profiles can cause excessive wear and rolling contact fatigue, poor vehicle performance, and can lead to potential safety hazards. For these reasons, it’s important to be able to accurately measure forces at the wheel/rail interface from the perspective of wheel, truck, and rail interaction. This is typically done using onboard measurement devices like continuous output instrumented wheelsets (IWSs), or via wayside devices like strain gauges and wheel impact load detectors (WILDs). “Wheel/rail force measurements allow you to make many fast and effective measurements to identify practical problems and solutions,” Zeng said. IWSs have also been used to validate and improve the accuracy of various models and simulations like those used in MxV Rail’s NUCARS modeling software.

Wheel impact load detectors are used extensively in the North American heavy-haul environment. These systems detect the impact or loading force of each wheel passing through the test site and flag wheels that are approaching (or exceed) a threshold that requires intervention. While the network of WILDs in use today has helped to improve industry safety and maintenance practices, there remains room for improvement in wheel condition monitoring, Zeng said. One such area for improvement is in the unification of wayside and onboard vehicle safety threshold/evaluation. Another is the further development of simulations that can better model real-world vehicle behaviors. “Those [simulations] require consistent and accurate wheel/rail force information as input,” he said.

Discontinuous and Continuous Measurement

From a technological standpoint, there are a number of ways to measure wheel-force discontinuously — measurements that are taken at certain discrete intervals. The most commonly-used rail strain gauge is based on the shear-force method, also called the differential shear method, Zeng said. This method is easy to implement and generates output data that is independent of the status of tie and fastener. This is the basis for the typical wheel impact load detector. The weakness of this system is that the effective zone of measurement is relatively small, and only accurate near the middle of the crib— typically, the length of the 95% effective measurement zone is less than 200 mm, he said.

Some of the weaknesses inherent in discontinuous wheel/rail force measurement can be countered by the use of continuous measurement devices based on load pads or instrumented tie plates. However, there are weaknesses inherent in this method, too. For example, the output for a given wheel would be affected by the forces generated by the adjacent wheels, Zeng said. To counter this, the rail can be cut at both ends of the measurement zone. This isolates the wheel(s) from those adjacent, but it also creates a discontinuity in the rail that is prone to generating high impact loads. For this reason, such configurations are typically found only in static or low-speed settings like weighbridges and track scales, he said.

An early breakthrough (circa 1980) in continuous measurement techniques proposed the pairing of discontinuous shear-force strain gauge measurement with load pad technology. This effectively extends the effective zone of the shear-force measurement and maintains better wheel force isolation without necessitating a physical cut in the rail, Zeng said. A further refinement of this technique positioned the strain gauges so that the distance between the sensors was less than the wheelbase. “This means there will never be more than one wheel on the shear force and the load pad unit at a time, and means you can obtain the wheel/rail force for each wheel,” he said.

In the early 1990s, the China Academy of Rail Sciences used this technique to improve the accuracy of high-speed track scales and to develop a train performance detection system (TPDS) to monitor vehicle hunting on the lines operated by China Railway (CR), Zeng said.

Figure 1 illustrates the basic design of CR’s earlier-model TPDS. In the case of this design, however, there are regions (circled in red) in which wheels pass through a transition zone that can’t properly measure rail shear force. These “dead zones” made up approximately 11% of the TPDS when it was first implemented, Zeng said, making it a “quasi-continuous” measurement system. Full continuous measurement remained the goal for several reasons; first, it would allow for accurate measurement of vehicles with different wheel diameters, and second, it would allow the TPDS to reliably measure wheel circumference, he said. In this case, the solution was fairly simple: the addition of a strain gauge inside the dead zone to effectively make the valid areas overlap (see figure 2).

These overlapping full-continuous measurement systems have proven to be effective, and able to measure a wide range of wheel/rail / vehicle dynamics such as weight in motion (WIM), overload, imbalance, hunting, wheel surface defects, and preventing bearing failure. But they are also quite costly and difficult to maintain. As a result, their use is typically limited to specialized test tracks, like the Siemens Test and Validation Center in Germany, Zeng said.

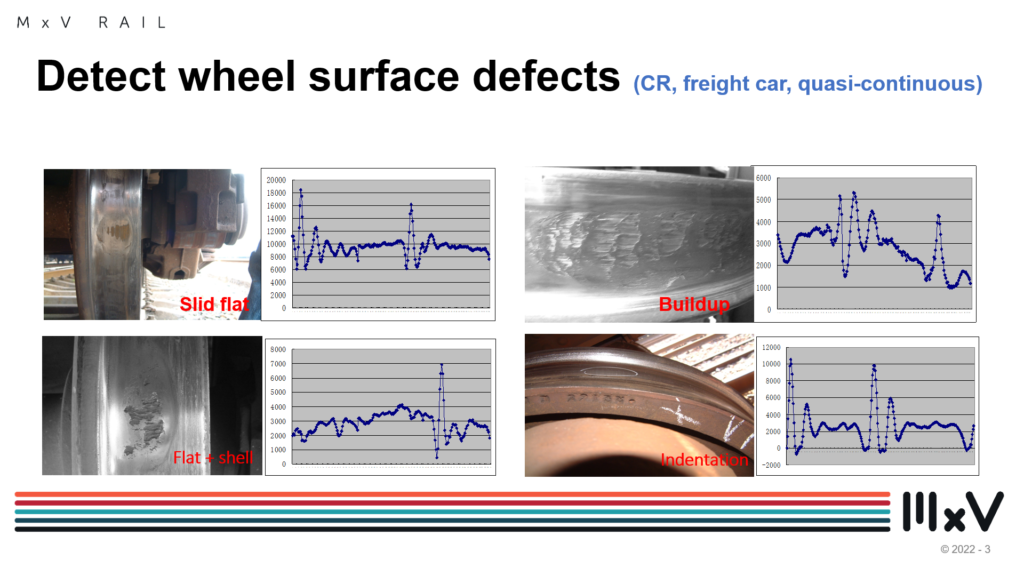

The success of these systems inspired Yuqing Zeng, prior to his work with MxV Rail, to develop an approach to solve the “dead zones” issue (as shown in figure 1) without requiring additional hardware. This approach, dubbed the Composite Unit Method, uses algorithms to infer “dead zone” data based on adjacent strain gauge, and underlying load pad data, Zeng said. Data generated by this composite unit method can, like in overlap-type TPDS systems, also be used to detect specific wheel surface defects like skid flats, shells, and out of roundness based on their measured characteristics. Figure 3 shows some of these defects and their respective composite unit signatures.

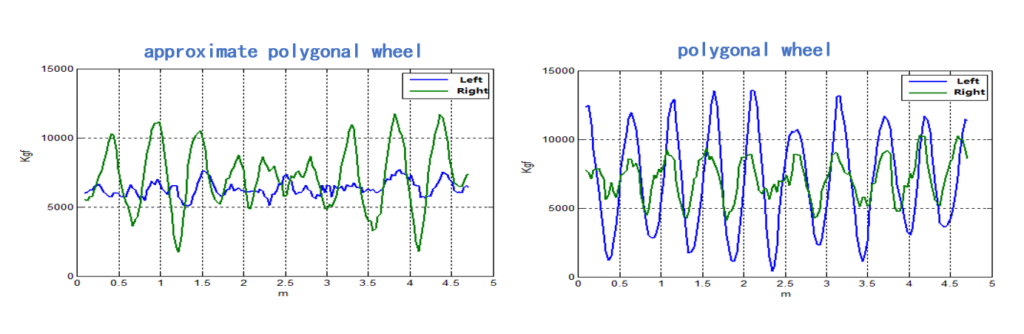

Another benefit of continuous measurement technologies versus discontinuous systems (like WILDs) is that the entire circumference of each wheel can be measured in a shorter test site (see figure 4). “Continuous measurement technologies give you 100% coverage of the wheel, enhancing the effectiveness of wheel and vehicle monitoring,” Zeng said. These systems also provide constant and consistent data that can be integrated with other condition-monitoring data for more in-depth analyses. One example of the kind of in-depth analysis that this data makes possible is assessment of wheel-break risk.

Jeff Tuzik is Managing Editor of Interface Journal.

This article is based on a presentation made at the WRI 2023 Heavy Haul conference.
